Technal windows in Indonesia

Soleal is now Technal’s standard window range: 55 or 65 mm modules with a thermal break, down to Uw 0.9 W/m²K, sashes up to 1.70 × 2.50 m and 160 kg with concealed hardware, and acoustic reduction up to −43 dB. It opens every way — side-hung, tilt and turn, top- and bottom-hung, projecting, parallel, pivot, and tilt and slide.

Topaze, now discontinued, is a 46 mm window without a thermal break, made for a tropical climate, taking infill from 6 to 33 mm, in three frame styles — straight, curved or basic — and sealed twice between the fixed and opening frames.

Both ranges are made to match the sliding systems and doors of the same name, so a whole house can be glazed in one consistent line.

Soleal is also made without a thermal break (Soleal FYn), on the same 55 mm module. Safetyline is the louvre window: glass or aluminium louvres opening up to 80° for cross-ventilation, up to 1.4 m wide, cyclone resistance class 5, and compatible with the Topaze range.

Topaze and Topaze+ have been discontinued; Soleal is now TECHNAL’s standard range.

Technal windows in Indonesia — the ranges at a glance
RangeModuleKey figures
Soleal55 or 65 mmThermally broken; Uw to 0.9 W/m²K; up to W 1.70 × H 2.50 m and 160 kg per leaf; RC2 (65); −43 dB
Soleal without thermal break55 mmNo thermal break; open-in and open-out; 2-leaf up to H 2.25 × W 2.40 m; glass 4–42 mm
Safetyline63 mmLouvre window; glass or aluminium louvres to 80°; up to 1.4 m wide; A2 E7B VC5; cyclone class 5
Topaze (discontinued)46 mmNo thermal break; infill 6–33 mm; straight, curved or basic frames; tropical climate

Figures from Technal’s catalogues and design manuals. “—” where the source gives none.

Soleal


Technal's universal window — one range in 55 and 65 mm modules, thermally broken, with Minimal or Visible sashes.

Characteristics

  • Soleal 55 — 55 mm module; Minimal sash with a 52 mm profile; Uw down to 1.2 W/m²K with triple glazing.
  • Soleal 65 — 65 mm module, 30 mm polyamide thermal break; Uw down to 0.9 W/m²K; RC2 break-in resistance.
  • Three styles — Contemporary, Classic and Traditional — with an optional clip-on trim.
  • Open-in and open-out: side-hung, tilt and turn, bottom- and top-hung, projecting, parallel, pivot, and tilt and slide.
  • Up to W 1.70 m × H 2.50 m and 160 kg per leaf with concealed hardware.
  • Acoustic up to −43 dB; weather up to A4-E1050-VC4.
  • Concealed drainage; matches Soleal sliding systems and doors.
Soleal

Technal Soleal tilt and slide — photograph Géraldine Andrieu

Safetyline


The louvre window: air through the room with the window shut against sun and rain.

Safetyline is a frame of turning louvres in glass, aluminium or a mix of the two. Opened up to 80 degrees they let air cross the room; closed, they seal on rubber gaskets. Aluminium louvres shade the opening, glass louvres keep the light, and a fly screen fits inside the frame. It pairs with the Topaze windows, doors and sliding systems, and can be motorised for home automation.

Characteristics

  • Louvres in glass, aluminium or a combination; fixed or moving; 135 mm pitch, opening up to 80°.
  • Up to 1.4 m wide; 63 mm frame module.
  • Weather A2 E7B VC5 (glass louvres, 1 × 1.14 m); cyclone resistance class 5.
  • Integrated fly screen.
  • Optional concealed motor (12 V DC, 10 W): up to 18 aluminium or 12 glass louvres per motor, wired or remote, home-automation ready.
  • Compatible with the whole Topaze range.
Safetyline

Technal Safetyline rendering — Technal design manual

Soleal without thermal break


The Soleal range in a version without a thermal break: the same 55 mm design, for windows, sliding doors and doors.

Soleal is also made without the polyamide insulating strip, under the names FYn (windows), GYn (sliding) and PYn (doors). The profiles keep Soleal's 55 mm module, and the three can be joined in one frame, with Safetyline louvres fitted in as well. The sliding door has a reinforced, anti-cyclonic version.

Characteristics

  • Windows (FYn 55): open-in side-hung, turn & tilt and bottom-hung; open-out side-hung and top-hung; 2-leaf up to H 2.25 × W 2.40 m; glass 4–42 mm (to 70 mm with extension).
  • Sliding (GYn 55): 2 or 3 rails, up to 6 leaves; up to 200 kg per leaf; single glazing 6–13 mm, double 24–32 mm; tested A4 E6A VC2 at 3.0 × 2.5 m.
  • Anti-cyclonic sliding version: reinforced stiles and drainage, tested to CE2250.
  • Doors (PYn 55): 1 or 2 leaves, open-in or open-out; leaf up to H 2.4 × W 1.2 m and 150 kg.
  • Combines with Soleal FYn, GYn and PYn and Safetyline louvres in composite frames.

Discontinued — data kept for reference

Topaze


The contemporary window that combines subtlety, simplicity and versatility.

Characteristics

  • 46 mm module with no thermal break.
  • 3 styles of open-in frames: straight, curved or basic. Square or rounded glazing beads on the inside.
  • Infill from 6 to 33 mm.
  • Double sealed fixed/opening frames via an internal/external multi-purpose gasket.
  • Recessed casement for multipoint locks.
  • Suitable for tropical climate.
  • Compatible with doors and sliding systems from the same range.
Topaze

Technal reference project

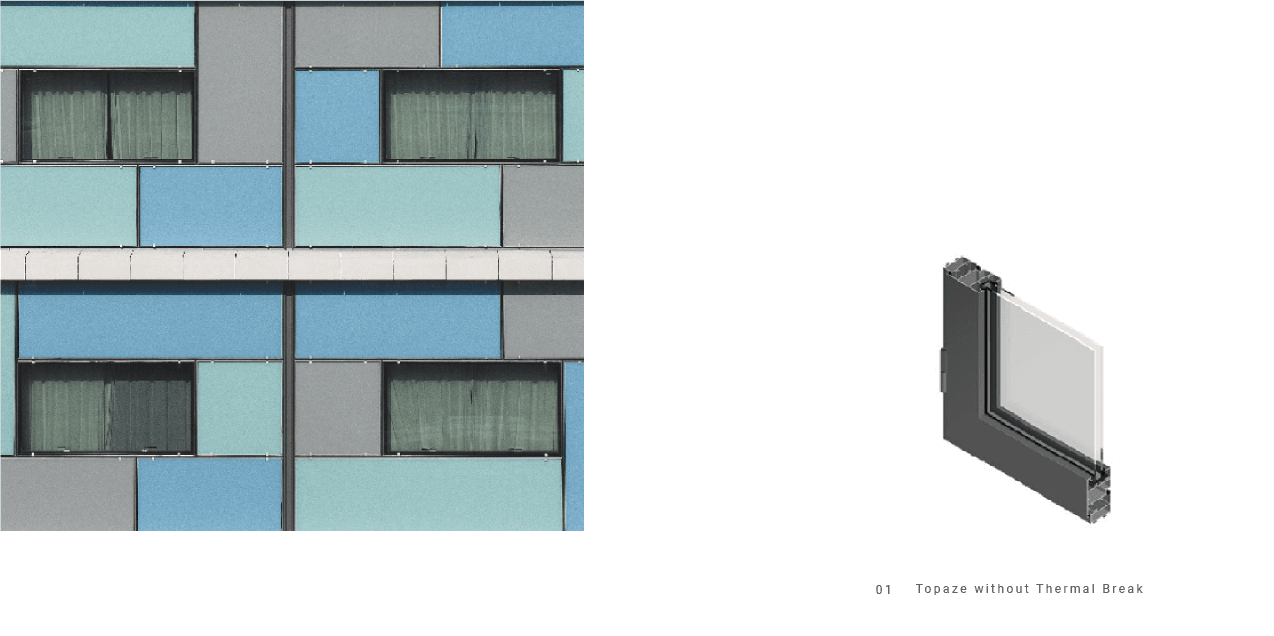

Topaze — profile and details

Technal windows by ARTEMI

Projects glazed by ARTEMI in these Technal ranges:

Jendela Technal di Indonesia: Soleal, kini seri standar Technal (55 atau 65 mm dengan thermal break, hingga 1,70 × 2,50 m; juga tanpa thermal break), Topaze (46 mm, untuk iklim tropis, kaca 6–33 mm; sudah tidak diproduksi), serta jendela jalusi Safetyline untuk ventilasi silang — casement, tilt and turn, top-hung, pivot dan lainnya. ARTEMI adalah importir resmi Technal: fabrikasi jendela aluminium di Surabaya dan pemasangan di seluruh Indonesia.
