Technal sliding doors in Indonesia

Technal makes five sliding systems. The choice between them comes down to three questions: how large the opening is, how slim the frame should look, and whether the room needs thermal insulation.

Soleal is now Technal’s standard range: thermally broken, it reaches 4.30 × 2.60 m in two leaves of up to 200 kg each, and it is also made without a thermal break (Soleal GYn), with a reinforced anti-cyclonic version. Topaze+, now discontinued, is a 46 mm system without a thermal break, with 36 mm central stiles, tested through more than 20,000 opening and closing cycles and made for a tropical climate. Lumeal hides the sash frame behind a 38 mm central stile and goes up to 5.30 × 2.70 m; Lumeal Minimalist takes the stile down to 27 mm and sets the sill flush with the floor. Galene is a lift-and-slide system for the widest openings, up to 6.5 × 2.5 m, with an optional blind inside the glass.

Topaze and Topaze+ have been discontinued; Soleal is now TECHNAL’s standard range.

Technal sliding doors in Indonesia — the ranges at a glance
RangeModuleKey figures
Soleal55 mm (65 mm option)Thermally broken; up to W 4.30 × H 2.60 m in 2 leaves; 200 kg per leaf; 1–4 tracks, 1–8 leaves
Lumeal—Concealed sash, 38 mm central stile; up to W 5.30 × H 2.70 m in 2 leaves; RC3 security; motor option
Lumeal Minimalist—27 mm central stile; flush sill; 2–5 leaves; tested at H 3.40 × W 3.20 m to 2,000 Pa wind load
Galene126 mmLift-and-slide; up to W 6.5 × H 2.5 m; with or without thermal break; integrated blind option
Topaze+ (discontinued)46 mmNo thermal break; 36 mm central stiles; infill 6–24 mm; 20,000+ test cycles; tropical climate

Figures from Technal’s catalogues and design manuals. “—” where the source gives none.

Soleal


The universal sliding system, made for projects of every size — now Technal's standard range.

Characteristics

  • 55 mm module with thermal break; also a 65 mm module with a 40 mm thermal break where insulation must be higher.
  • Up to W 4.30 m × H 2.60 m for a 2-leaf patio door on 2 tracks; up to 200 kg per leaf.
  • 1 to 4 tracks and 1 to 8 leaves, with full-access (pocket) frames and 90° corner versions.
  • Multipoint locking from 1 to 4 points, with a key-lock option.
  • Concealed drainage in every configuration.
  • Uw down to 1.4 W/m²K; acoustic −35 dB; weather A4-E6A-VB2.
  • Threshold for disabled access available in every configuration.
Soleal

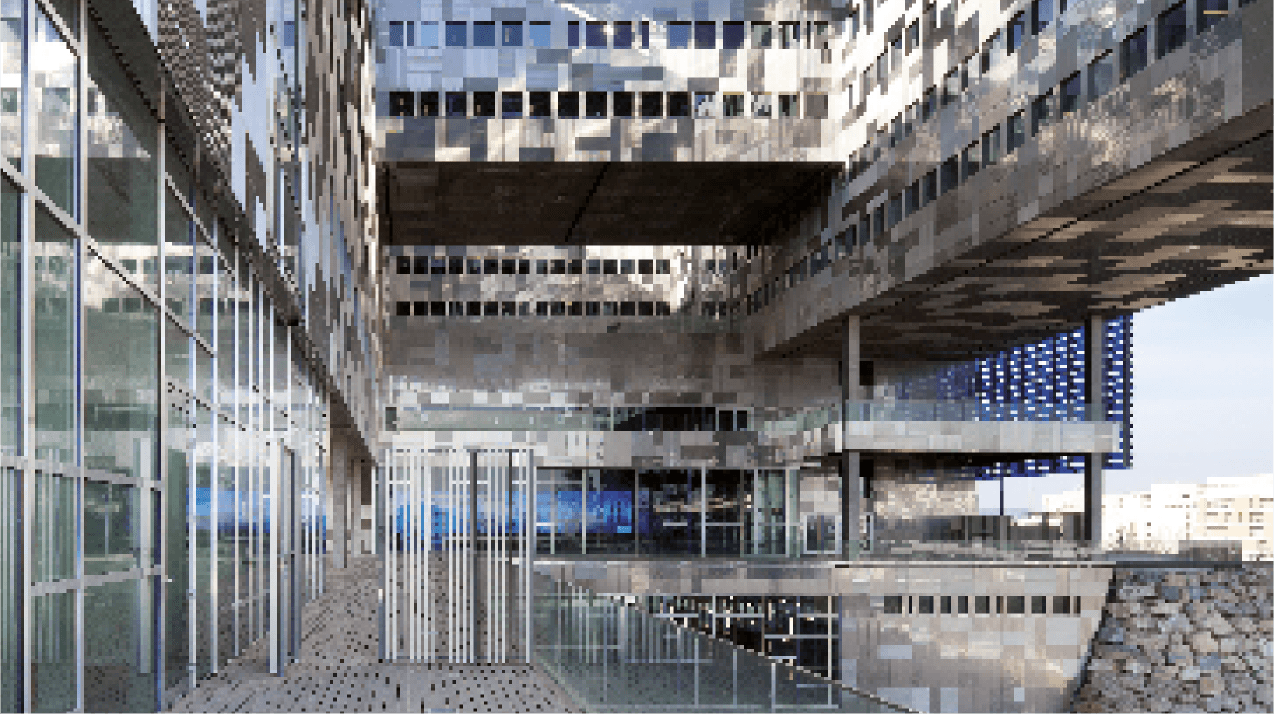

Technal reference project — Lacaton & Vassal

Lumeal


The minimal sliding system with a concealed opening frame: where design meets performance.

Characteristics

  • Discreet aluminium frame with a visible 38 mm and 77 mm central aluminium stile.
  • Large sizes up to W 5.30 m x H 2.70 m available for 2-leaf patio doors.
  • Concealed drainage in all configurations.
  • Threshold adapted for disabled persons.
  • Enhanced security: RC3 resistance class according to European standard EN 1627-30.
  • Motorisation (optional).

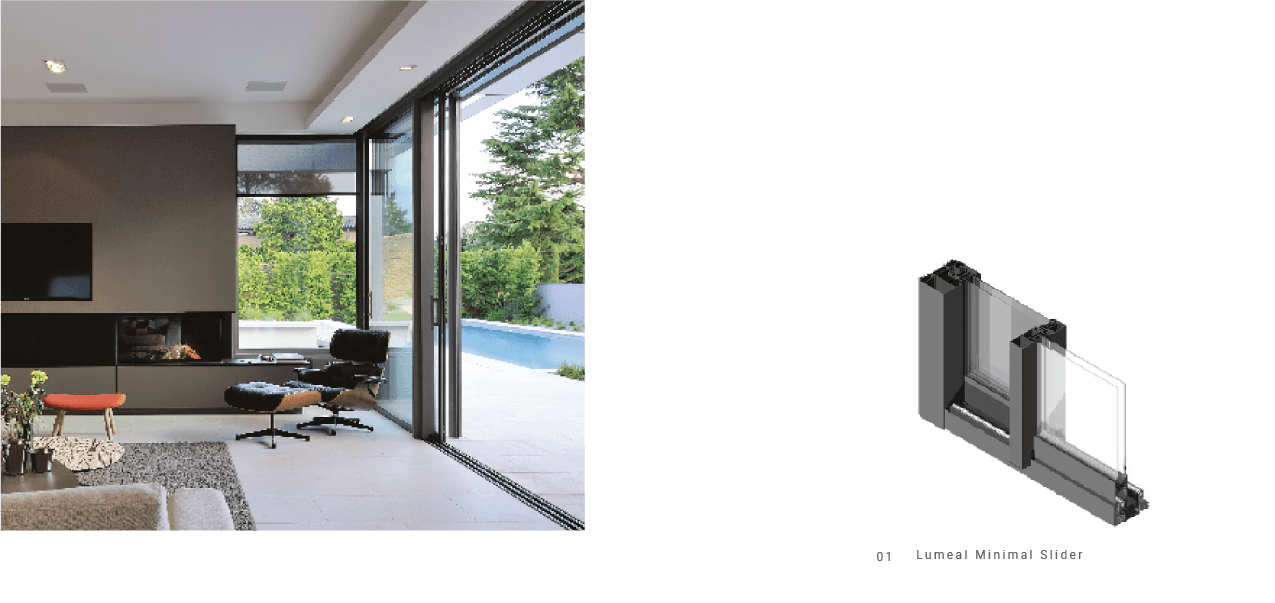

Lumeal

Technal reference project

Lumeal — profile and details

Lumeal Minimalist


Lumeal at its slimmest: a 27 mm central stile, the sash frames hidden, the sill flush with the floor.

Characteristics

  • Central stiles only 27 mm wide seen from the front; top and bottom sash rails fully concealed in the frame.
  • Sill flush with the floor finish inside and out, with a concealed outside gutter that takes a grating or the floor material.
  • 2 or 3 tracks for 2 to 5 leaves; a single-track version for 1 leaf + 1 fixed or 2 leaves + 2 fixed.
  • Double glazing from 24 to 32 mm; for high wind loads the glass is bonded into the sash.
  • Tested to ASTM at H 3.40 m × W 3.20 m (2 leaves, 2 tracks): watertight to 390 Pa, wind load 2,000 Pa.
  • Rollers carry up to 180 kg per metre of sash; 1- to 3-point locking.
  • Thermally broken version available.
Lumeal Minimalist

Lumeal Minimalist cut-away — Technal design manual, 2024

Galene


The panoramic lift-and-slide system with an integrated blind for solar protection.

Characteristics

  • Lift-and-slide system with a 126 mm module.
  • Available with or without a thermal break.
  • Various configurations possible to meet the requirements of even the most ambitious architectural projects (including 90° angle sliding frames).
  • Large sizes up to W x H = 6.5 m x 2.5 m.
  • 2-, 3- or 4-point locking systems activated by a special handle (single or double).
  • Possibility of glazing with an integrated blind for solar protection.

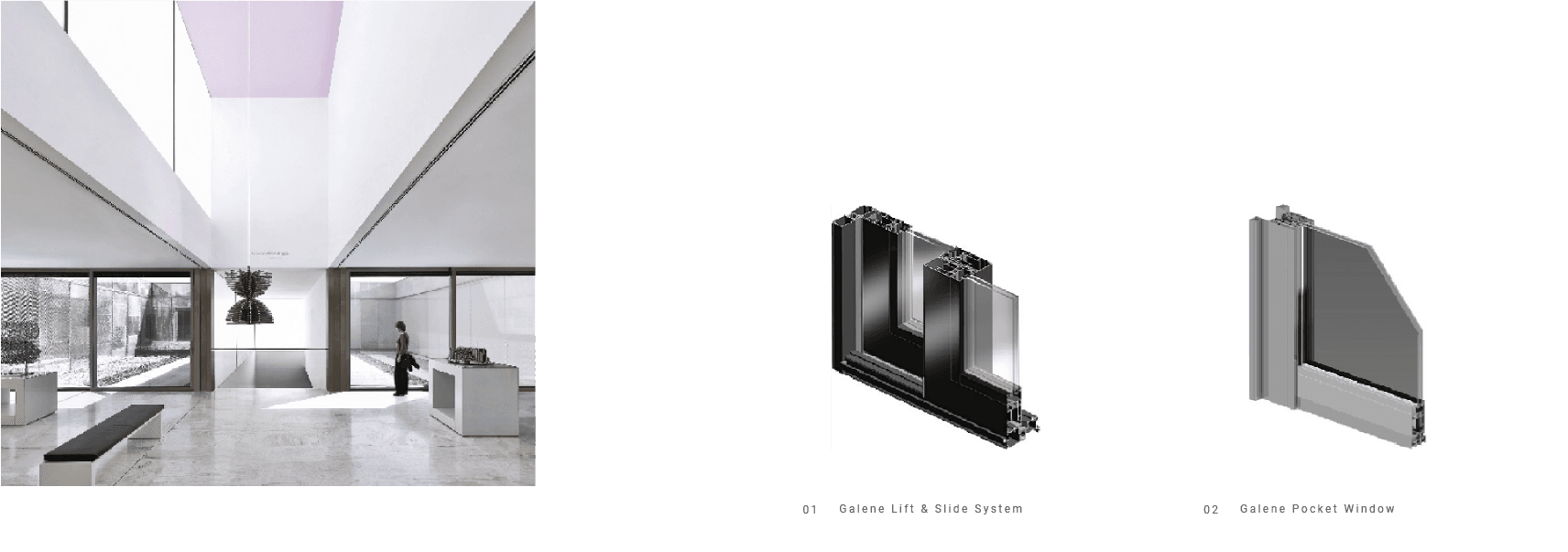

Galene

Technal reference project

Galene — profile and details

Discontinued — data kept for reference

Topaze+


The contemporary sliding system for large openings.

Characteristics

  • 46 mm module with no thermal break.
  • Variety of different creations with straight or curved designs.
  • Discreet 36 mm central stiles.
  • Infill from 6 to 24 mm.
  • Full range of closing mechanisms.
  • Subjected to more than 20,000 open and close test cycles.
  • Suitable for tropical climate.
  • Compatible with doors and windows from the same range, and with Safetyline louvre windows.

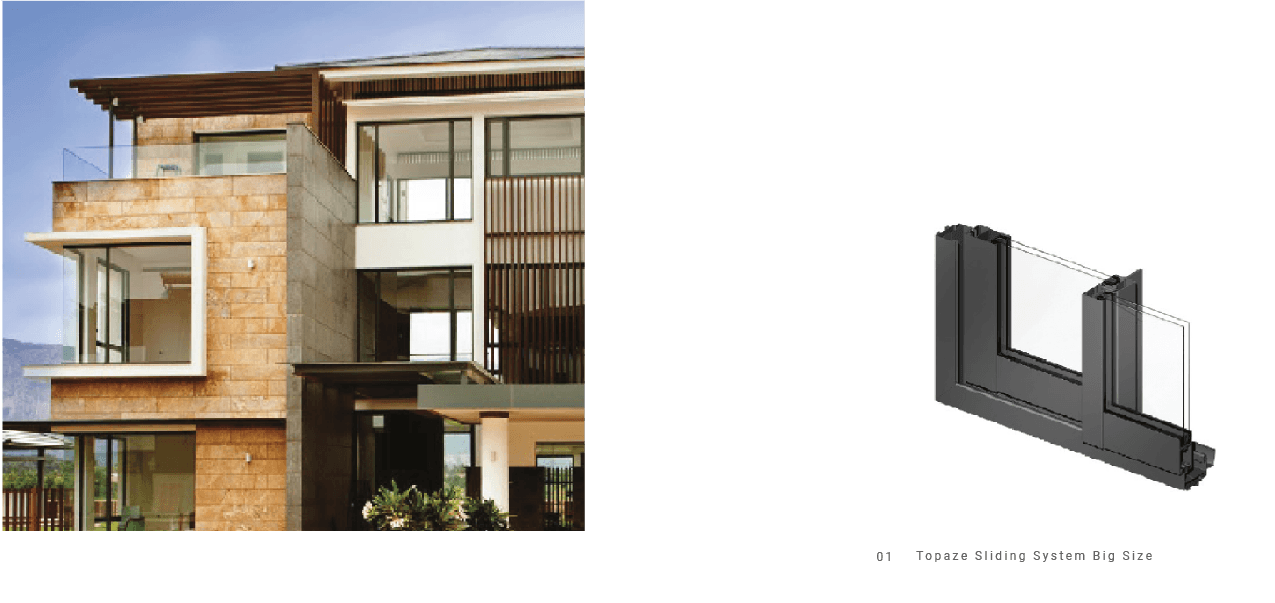

Topaze+

Technal reference project

Topaze+ — profile and details

Technal sliding system by ARTEMI

Projects glazed by ARTEMI in these Technal ranges:

Pintu sliding Technal di Indonesia: Soleal, kini seri standar Technal (dengan thermal break, hingga 4,30 × 2,60 m; juga tanpa thermal break), Topaze+ (46 mm, untuk iklim tropis; sudah tidak diproduksi), Lumeal dan Lumeal Minimalist (stile tengah 38 mm dan 27 mm, sill rata lantai) dan Galene (lift-and-slide hingga 6,5 × 2,5 m). ARTEMI adalah importir resmi Technal — fabrikasi di Surabaya dan pemasangan pintu sliding di seluruh Indonesia.
