Technal doors in Indonesia

Four Technal door ranges, from the front door of a house to the entrance of a public building. Soleal, now Technal’s standard range, is the insulated 55 mm door, up to 1.1 × 3 m and 150 kg per leaf, tested past a million opening cycles and rated RC3 against break-in.

Titane is built for heavy use, with concealed hinges, an integrated handle, screwed internal glazing beads against vandalism and electromagnetic access control. Ambial is a folding door that opens a whole wall — up to 12 m in ten leaves.

Topaze, now discontinued, is the 46 mm hinged and double-action door that matches Topaze windows and sliding doors.

Topaze and Topaze+ have been discontinued; Soleal is now TECHNAL’s standard range.

Technal doors in Indonesia — the ranges at a glance
RangeModuleKey figures
Soleal55 mmThermally broken; up to W 1.1 × H 3 m and 150 kg per leaf; 1 million+ cycles; RC3
Ambial75 mmFolding; up to 12 m in 10 leaves; infill 14–52 mm; 3-point lock
Titane63 mmConcealed hinges tested to 1 million cycles; anti-finger-trap version; electromagnetic access
Topaze (discontinued)46 mmNo thermal break; single- or double-action; anti-finger-trap version

Figures from Technal’s catalogues and design manuals. “—” where the source gives none.

Soleal


The universal door: hinged, pivoting swing door and tube-stile door, all from one 55 mm base.

Characteristics

  • 55 mm module with full thermal break.
  • Up to W 1.1 m × H 3 m and 150 kg per leaf.
  • 1 or 2 leaves; single- or double-action; open-in or open-out.
  • More than 1 million opening cycles tested (EN 1191, class 8) — made for heavy traffic.
  • RC3 break-in resistance (EN 1627).
  • Threshold-free installation for disabled access; finger-protection versions for public buildings.
  • Matches Soleal windows and sliding systems.
Soleal

Technal reference project — photograph Xavier Bénony

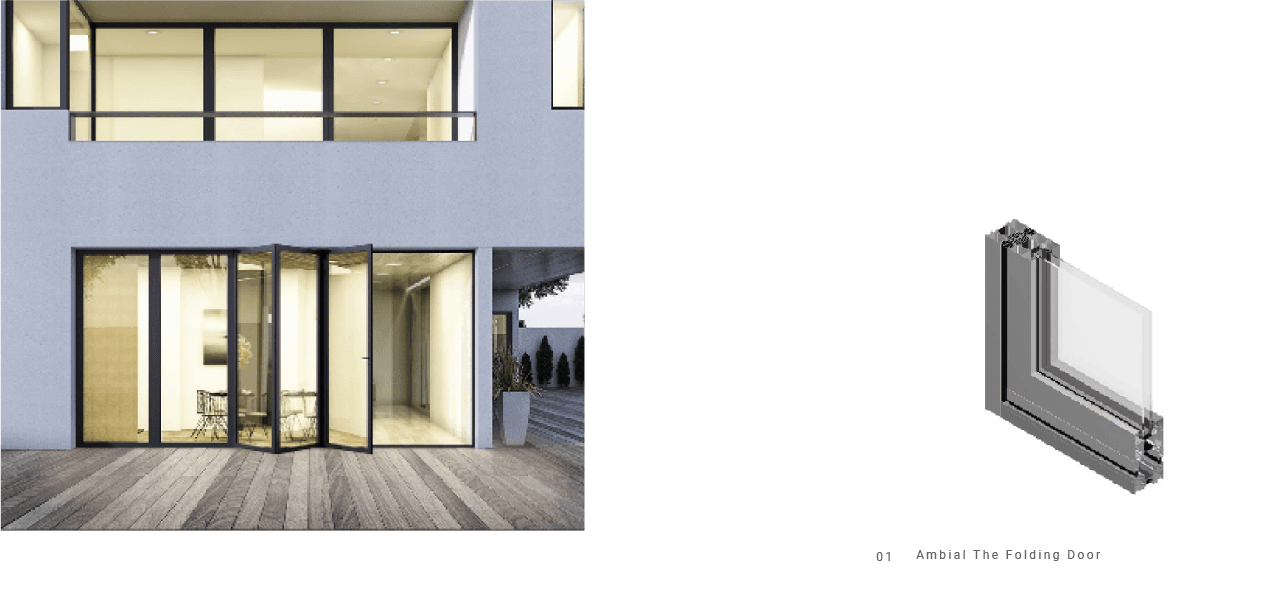

Ambial


The contemporary folding door for large openings.

Characteristics

  • 75 mm module for the opening and fixed frame.
  • Large sizes available up to 12 m long in 10 leaves.
  • Infill from 14 to 52 mm.
  • Sleek design.
  • Advanced thermal performance.
  • 3-point locking system with insulated key lock.

Built by ARTEMI with Ambial

GF House

Ambial

Technal reference project

Ambial — profile and details

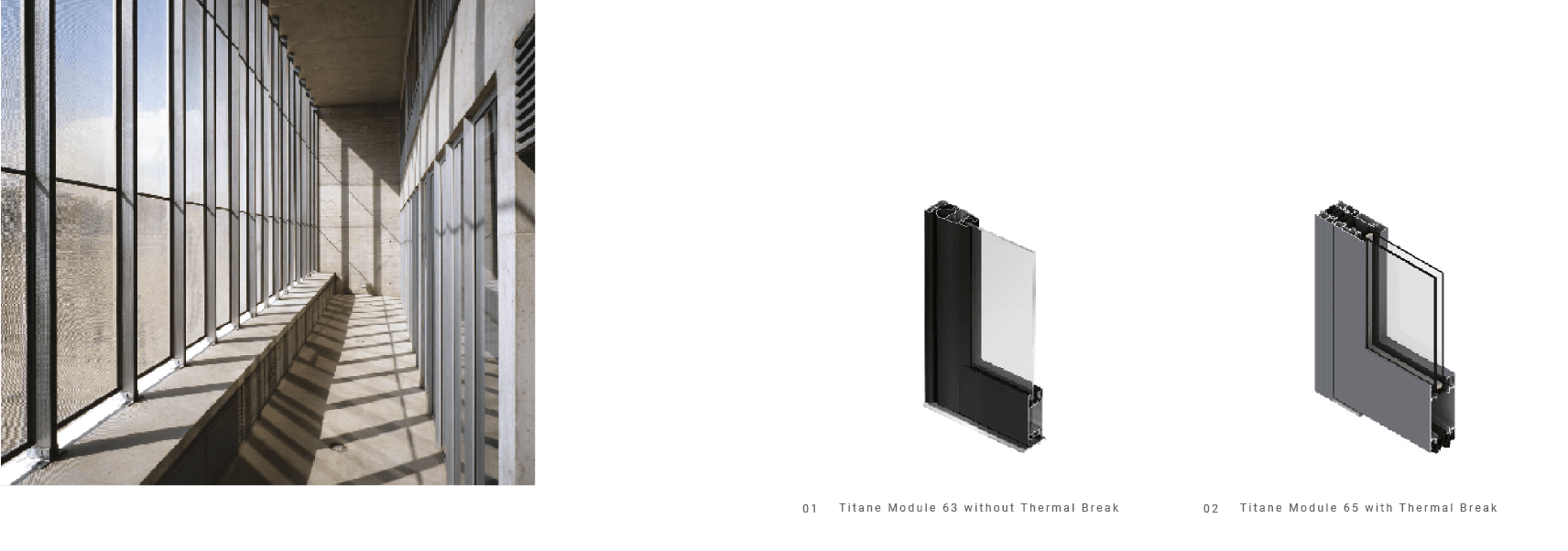

Titane


The intensive use door with enhanced burglary resistant security features.

Characteristics

  • 63 mm module.
  • Sleek aesthetic, elliptical lines, concealed hinges, integrated handle.
  • Hinge system subjected to 1 million class 8 test cycles.
  • Anti-finger trap version is ideal for public places.
  • Screwed internal glazing beads to delay burglary and vandalism.
  • Access controlled via an electromagnetic closure system and 3-point lock.
Titane

Technal reference project

Titane — profile and details

Discontinued — data kept for reference

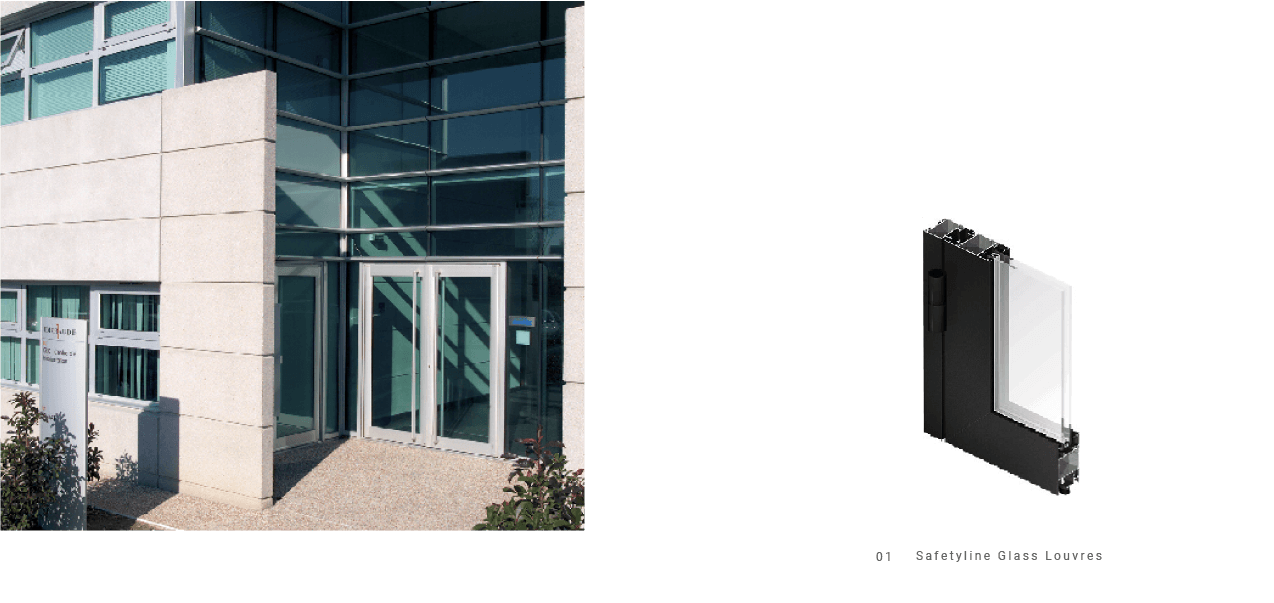

Topaze


The contemporary door that can be adapted to each project.

Characteristics

  • 46 mm module with no thermal break.
  • Hinged single-action door.
  • Double-action door via an in-ground pivot.
  • Double-action anti finger-trap version.
  • Wide range of handles and closing mechanisms.
  • Several different thresholds suitable for different locations.
Topaze

Technal reference project

Topaze — profile and details

Technal doors by ARTEMI

Projects glazed by ARTEMI in these Technal ranges:

Pintu Technal di Indonesia: Soleal, kini seri standar Technal (55 mm, hingga 1,1 × 3 m, RC3), Topaze (pintu swing dan double-action 46 mm; sudah tidak diproduksi), Titane (untuk lalu lintas tinggi) dan Ambial (pintu lipat hingga 12 m). ARTEMI adalah importir resmi Technal — fabrikasi pintu aluminium di Surabaya dan pemasangan di seluruh Indonesia.
